30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP
₩21
Sale price
₩21
Regular price
Skip to product information
30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP
₩21
Sale price
₩21
Regular price
Shipping calculated at checkout.
About This
- 30 Amp 300V 1x10 position screw terminal block distribution module.
- Rated current 30 Amp(per pole total input or output), Maximum voltage 300V.
- Screw terminal blocks, Pitch 7.62mm/0.197", Wire range 26AWG ~ 10AWG / 4mm square. Rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Overview
- Gauge : 0.01
- Connector Type : Screw
- Number Of Contacts : 10
- Material : Polycarbonate (PC)
- Brand : OONO

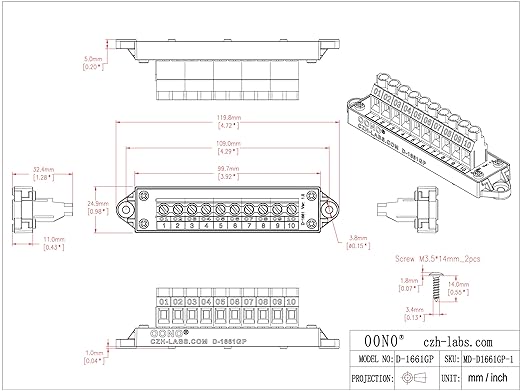

- Product Dimensions : 4.72"W x 0.97"H
- Specification Met : RoHS
- Manufacturer : CZH-LABS
