10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification

10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification

₩82
₩82
Skip to product information
10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
  • 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification

10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification

₩82
₩82
Shipping calculated at checkout.

About This

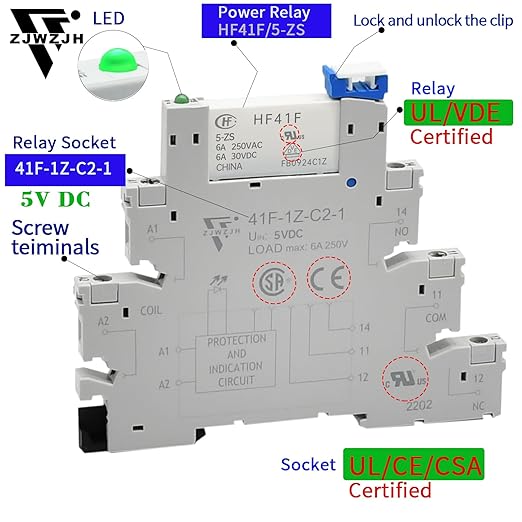

  • 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power RelayThe thickness is only 0.24 "/6.2mm.
  • 【Electromechanical Relays】Relay Coil Voltage:5V DC, Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

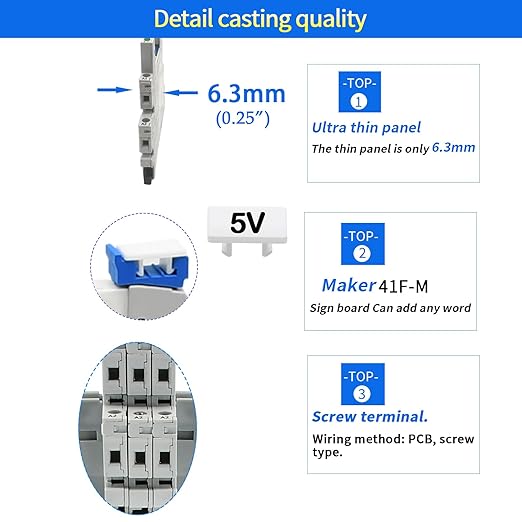

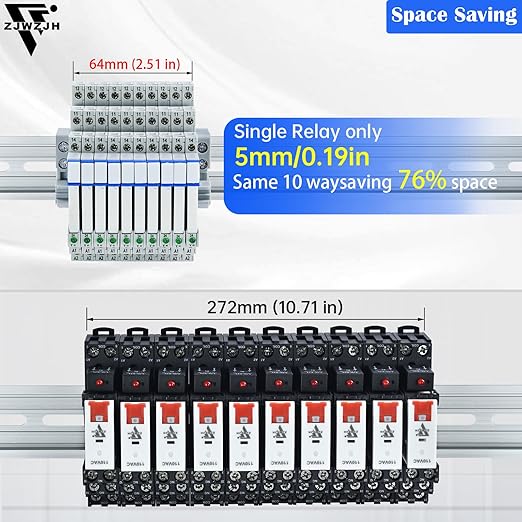

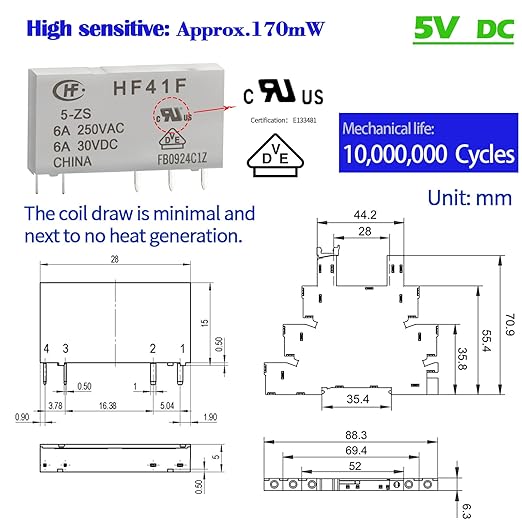

  • 【Size】Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
  • 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

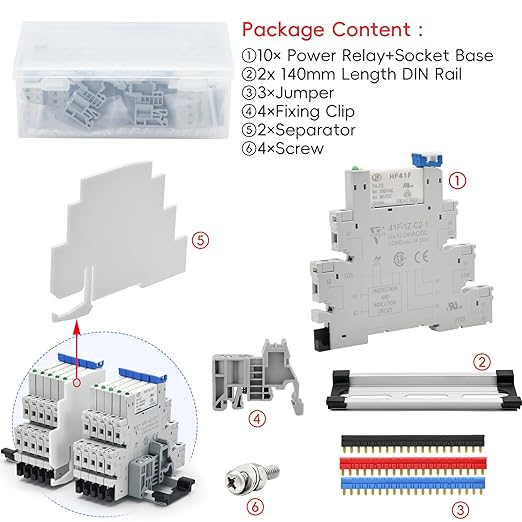

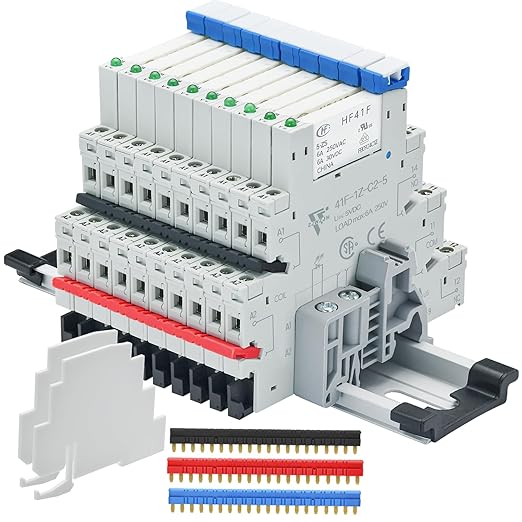

  • 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail;3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

  • Connector Type : Screw
  • Contact Material : Silver Tin Oxide
  • Contact Type : Spdt
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
