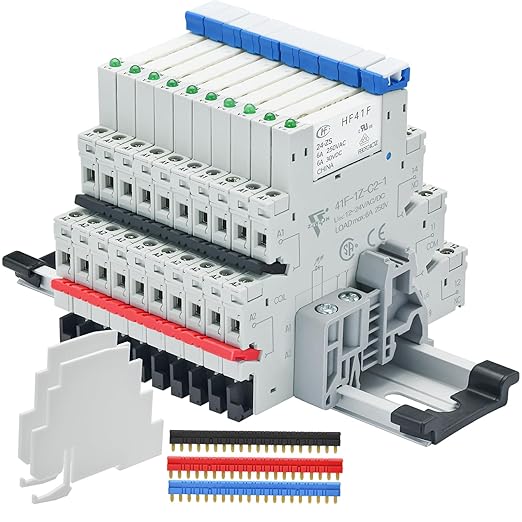

ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed

ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed

₩82
₩82
Skip to product information
ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
  • ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed
ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed

ZJWZJH 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Listed

₩82
₩82
Shipping calculated at checkout.

About This

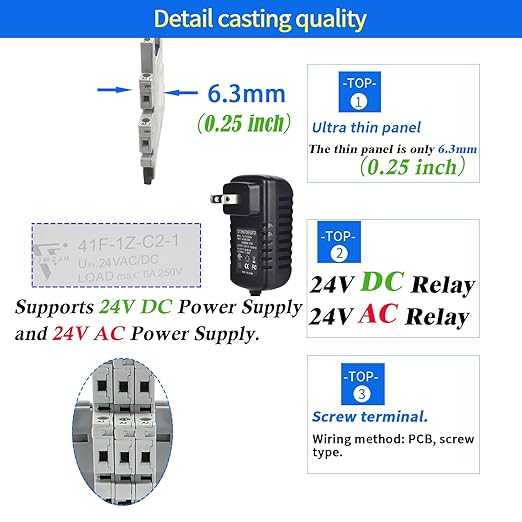

  • 【UL Listed】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.3mm.
  • 【Electromechanical Relays】Relay Coil Voltage: 24V AC/DC , Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

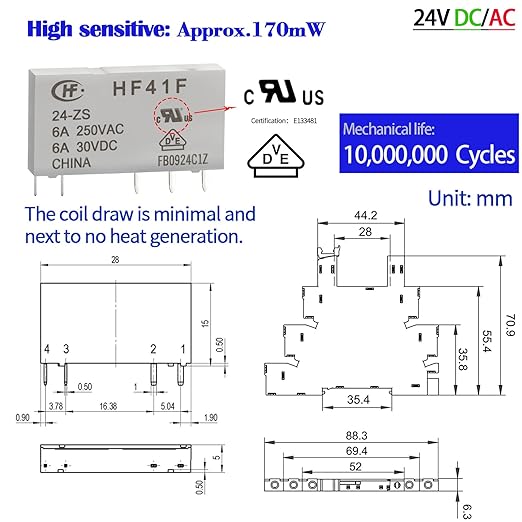

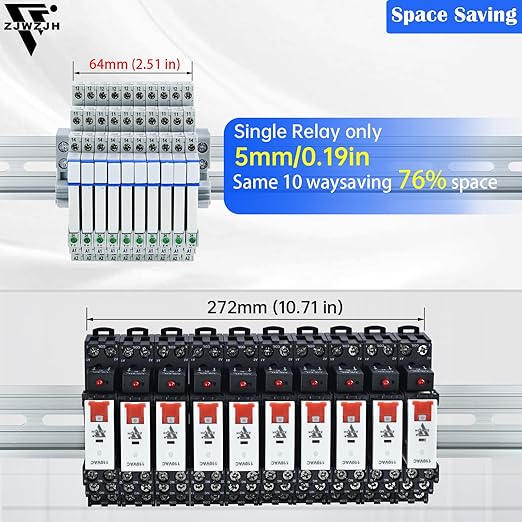

  • 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

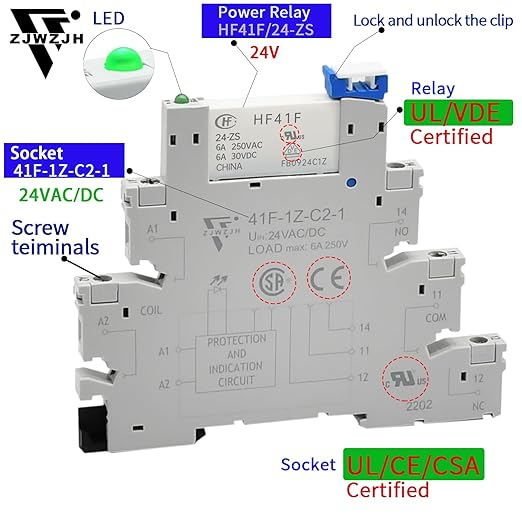

  • 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

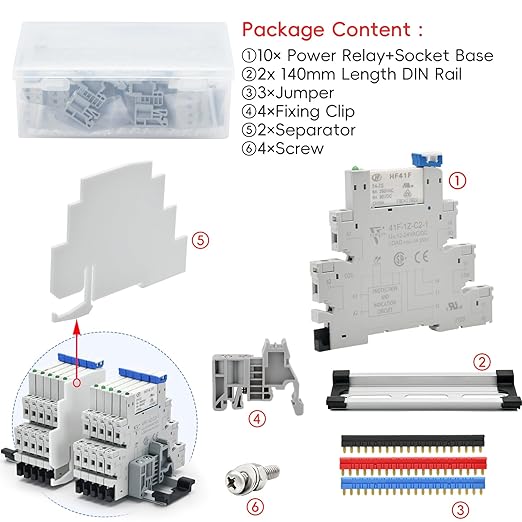

  • 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail; 3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

  • Connector Type : Screw
  • Contact Material : Silver Tin Oxide
  • Contact Type : Spdt 1no+1nc
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
