3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw

3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw

₩38
₩38
Skip to product information
3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
  • 3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw
3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw

3Pcs 24V Miniature Relay for PLC Controller 24VDC and 24VAC Relay SPDT 6Amp with LED Light Socket 41F-1Z-C4 Spring Terminals Push in Socket No Need for Screw

₩38
₩38
Shipping calculated at checkout.

About This

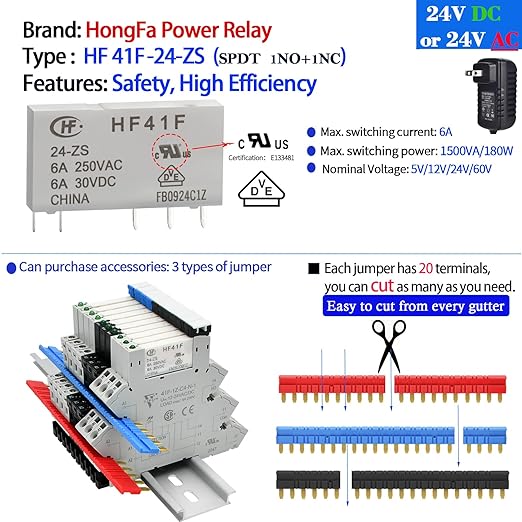

  • 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
  • 【Electromechanical Relays】Relay Coil Voltage: 24V DC and 24V AC , Contact:SPDT, 1NO 1NC; Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

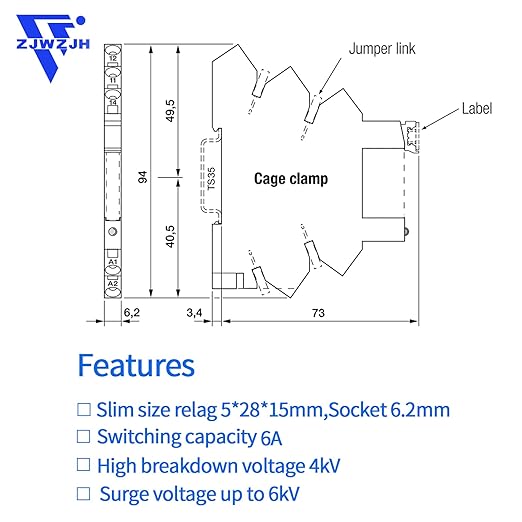

  • 【Easy to install】Insert a small blade or a straight screwdriver into the small square hole, and then directly insert the wire into the circular hole.★★ No need to twist screws,★★ easy and convenient. Size: 70.9 x 88.3 x 6.3mm / 2.8"x3.5"x 0.25" (H*L*W).

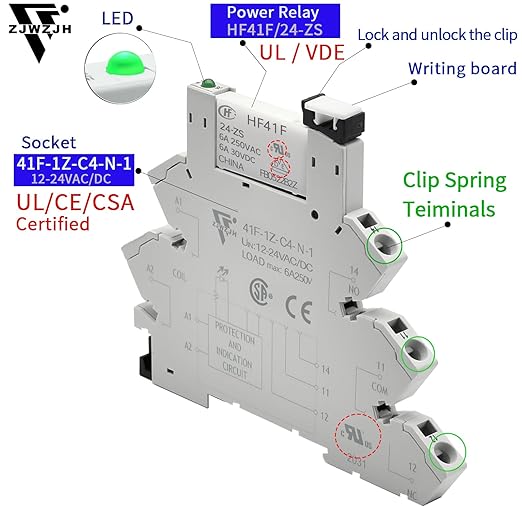

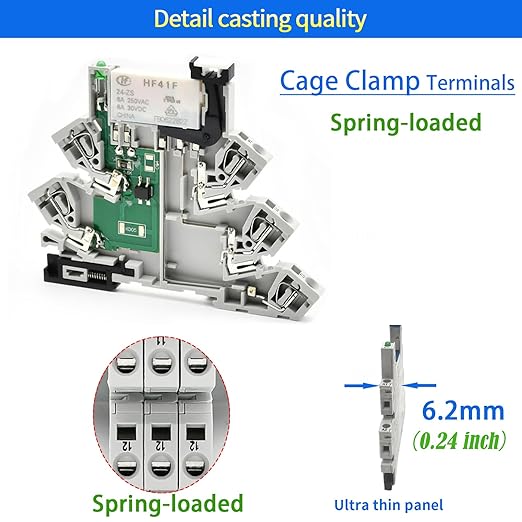

  • 【Socket】Socket: Spring -Loaded Cage Clamp Terminals, DIN rail mounting, with finger protection device.Relay Input voltage: 24V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

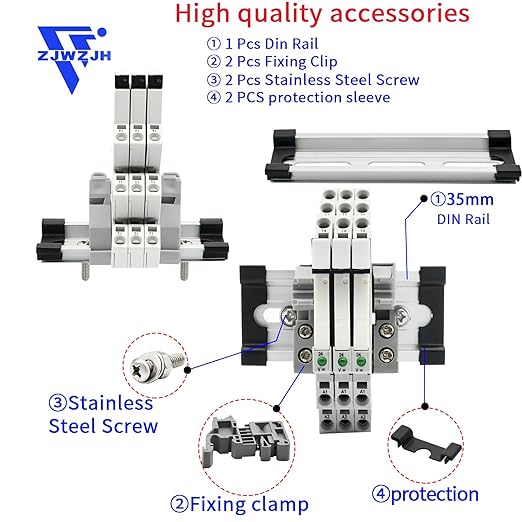

  • 【Package】Package Content : 3× Relay; 3× Socket Base; 1x DIN Rail; 2× Fixing Clip; 2× Screw. Ambient temperature: -40℃ ~ 70℃.

Overview

  • Connector Type : Spring Terminals
  • Contact Material : Silver Tin Oxide
  • Contact Type : Normally Open
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
