Haldzemo 1.3 inch OLED Display Module I2C IIC 128x64 LCD Screen S H1106 12864 Compatible Arduino (2 Pack, Blue)
₩16
Sale price
₩16
Regular price
Skip to product information
Haldzemo 1.3 inch OLED Display Module I2C IIC 128x64 LCD Screen S H1106 12864 Compatible Arduino (2 Pack, Blue)
₩16
Sale price
₩16
Regular price
Shipping calculated at checkout.
About This

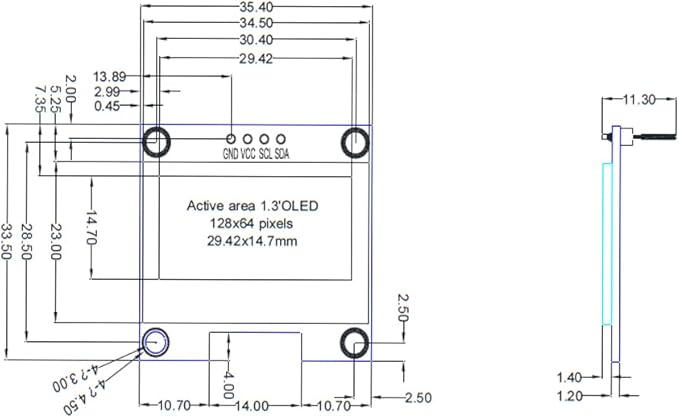

- 1.3" OLED screen module 128*64 resolution, panel size: 35.4×33.5mm, Interface type: IIC interface

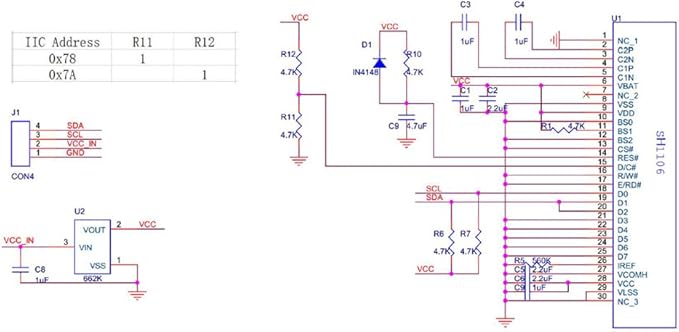

- The I2C default address is 0x3C(on the back it says 0x78) (selectable to 0x7A by re-soldering a resistor)
- 1.3inch OLED self-luminous, no backlight. The main chip is S H1106, supports DC 3.3V to 5.0V

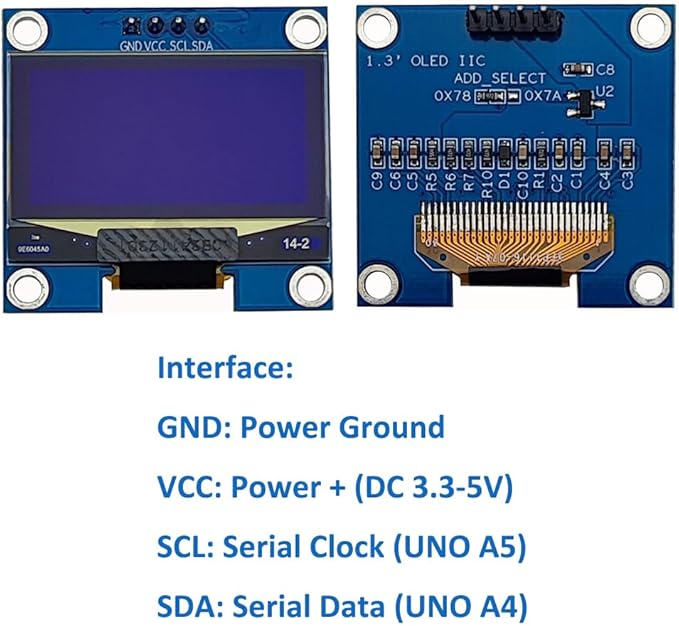

- 4pin Interface: GND: Ground, VCC: DC 3.3-5V, SCL: Serial Clock, SDA: Serial Data
- Compatible Arduino Raspberry Pi ESP8266 ESP32
