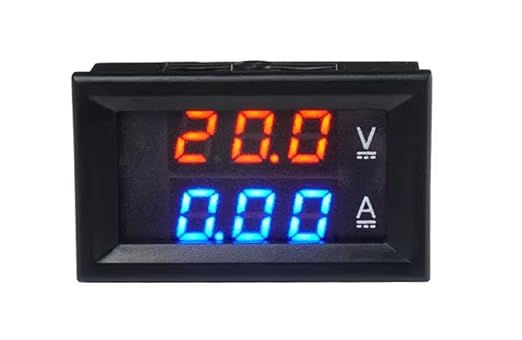

Taidacent Modbus RTU Power Monitor Energy Meter with RS485 TTL Isolated 100V 5A 10A 50A 100A DC Voltage Current Meter with Dual LCD Display (100V100A_Modbus Protocol_485 Isolation)
Taidacent Modbus RTU Power Monitor Energy Meter with RS485 TTL Isolated 100V 5A 10A 50A 100A DC Voltage Current Meter with Dual LCD Display (100V100A_Modbus Protocol_485 Isolation)
About This
- Usually the minimum measurable current value is 2% of the selected range. When selecting the current range (such as: 1A, 5A...100A, 200A, etc.), please try to select the range that is close to the measured current value. This can achieve the best measurement accuracy
- No matter whether the measured current is less than 10A, the meter must be connected to a shunt to measure the current regardless of whether the measured current is more than 10A! Otherwise it will burn the meter head

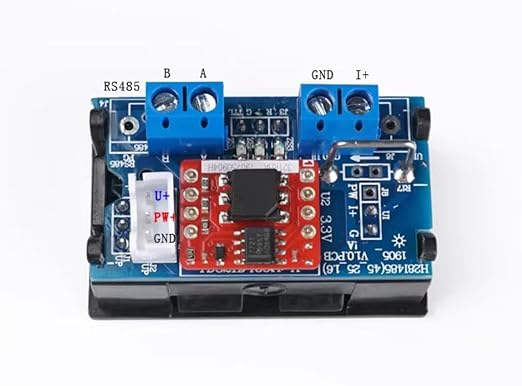

- When measuring current, only connect terminal GND and terminal I+ between the negative pole of the power supply and the negative pole of the load
- The power supply voltage of the meter must be 4.5-28V. If it exceeds 28V, an independent power supply is required. Please connect according to the figure. The four points of the shunt cannot be changed at will
Overview
- Brand : Taidacent
- Power Source : Battery Powered
- Color : 100V100A_Modbus protocol_485 isolation
- Measurement Type : Ammeter
- UPC : 795749945773
